Trolling Motor Installs made easy!
Sea Brackets offer a wide selection of trolling motor mounting plates designed to address the clearance and alignment challenges commonly faced by modern boats. These plates feature a sleek and durable design, providing secure attachment for your preferred trolling motor. Sea Brackets' mounting plates come in different sizes and shapes, with pre-drilled holes to align with Minn Kota's RTA-55, RTA-56, RTA-54, and RTA-62, as well as Rhodan's QRB and Garmin's Quick Release Plate system. The well-thought-out designs have been rigorously tested across various applications, ensuring optimal performance and reliability.

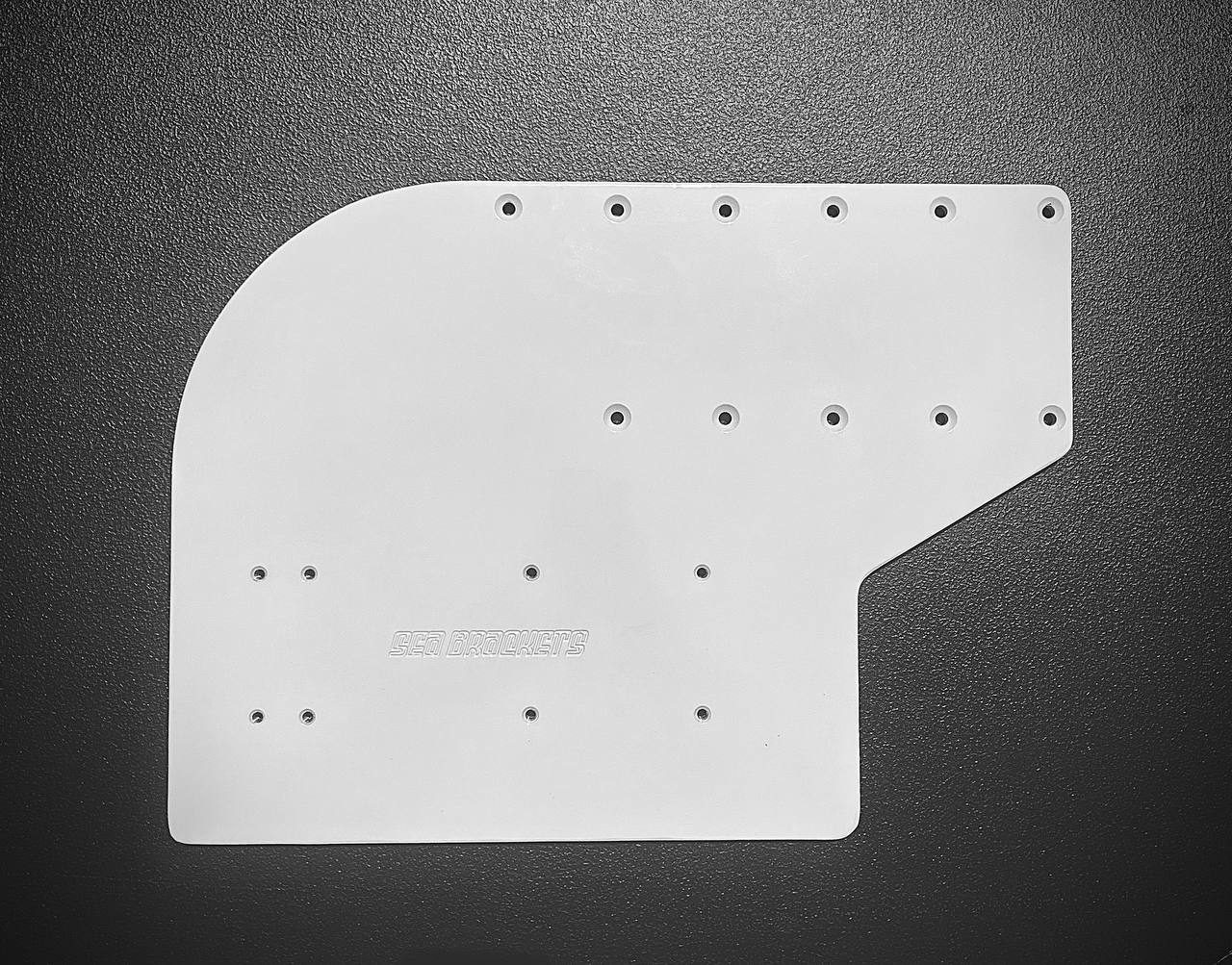

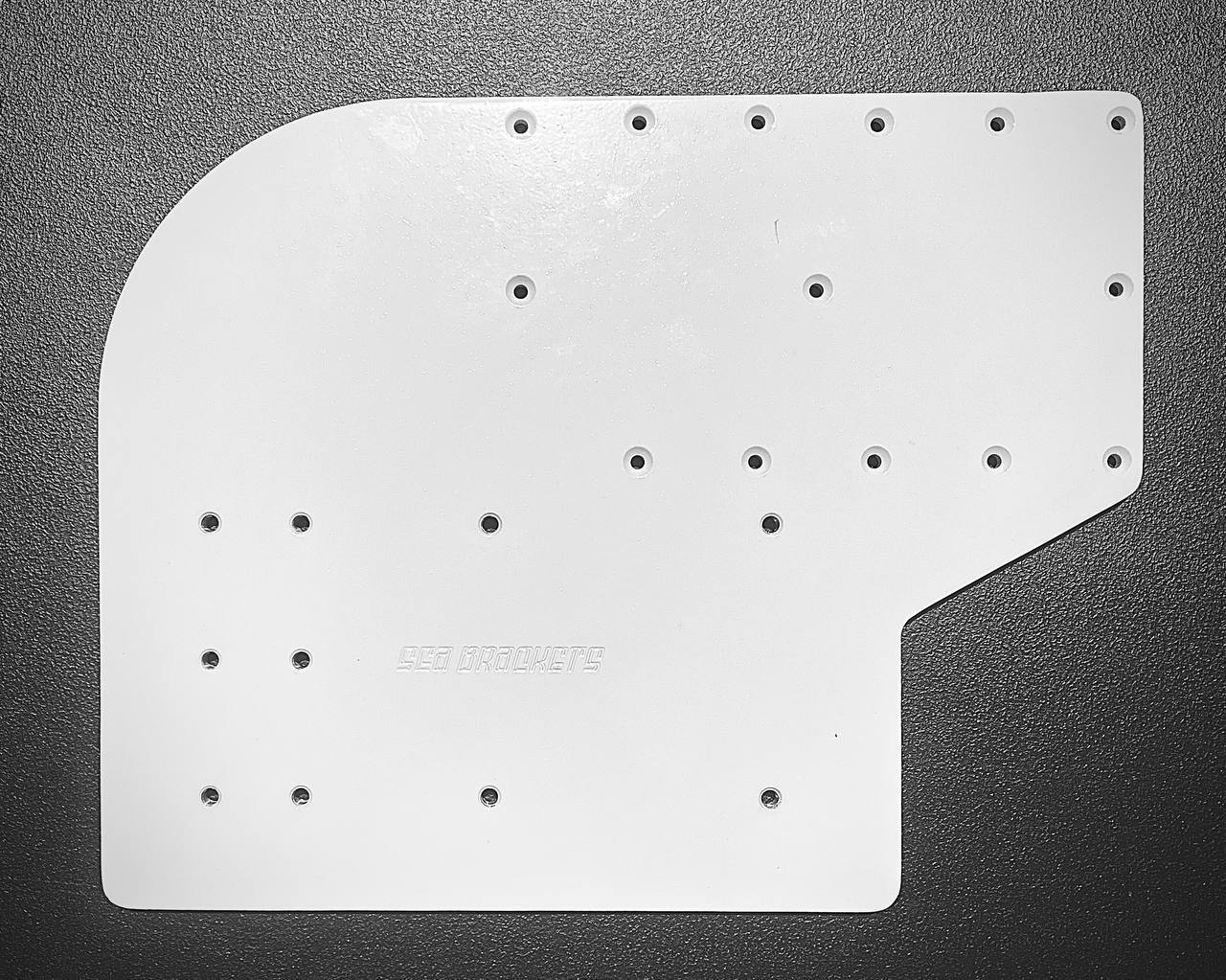

Large Offset Mounting Plate for Minn Kota RTA 54/62 and Rhodan Quick Release Plate System
Part Number: SEA2307
The trolling motor mounting plates, supplied by Sea Brackets, are manufactured using 6061 T6 Aluminum supplied primed and powder coated with added UV protection for a high quality and durable product. The tapped holes in the brackets are clean and free of power coat as well as gaged for accuracy and consistency for ease of bolt engagement. The manufacturing process is so reliable the brackets can be used as universal for both port and starboard installation, up to 108-inch shaft length.
- Large 1/2" 6061 Aluminum (Compatible with Rhodan QRB/ Minn Kota RTA-54/RTA-62) offset mounting plate. (18.5” x 15.5” x ½”)
Dimension Diagram
Suggested hardware:
1 / 4 – 20 tapered Phillips machine screws, fender washers, backing plates, and locknuts. 316 stainless steel is ideal for corrosion prevention. Mounting hardware that comes with the Rhodan quick release bracket or mounting hardware that comes with Minn Kota RTA-54/RTA-62
**Hardware length is dependent on the thickness of the hull, backing hardware, and other Various components.

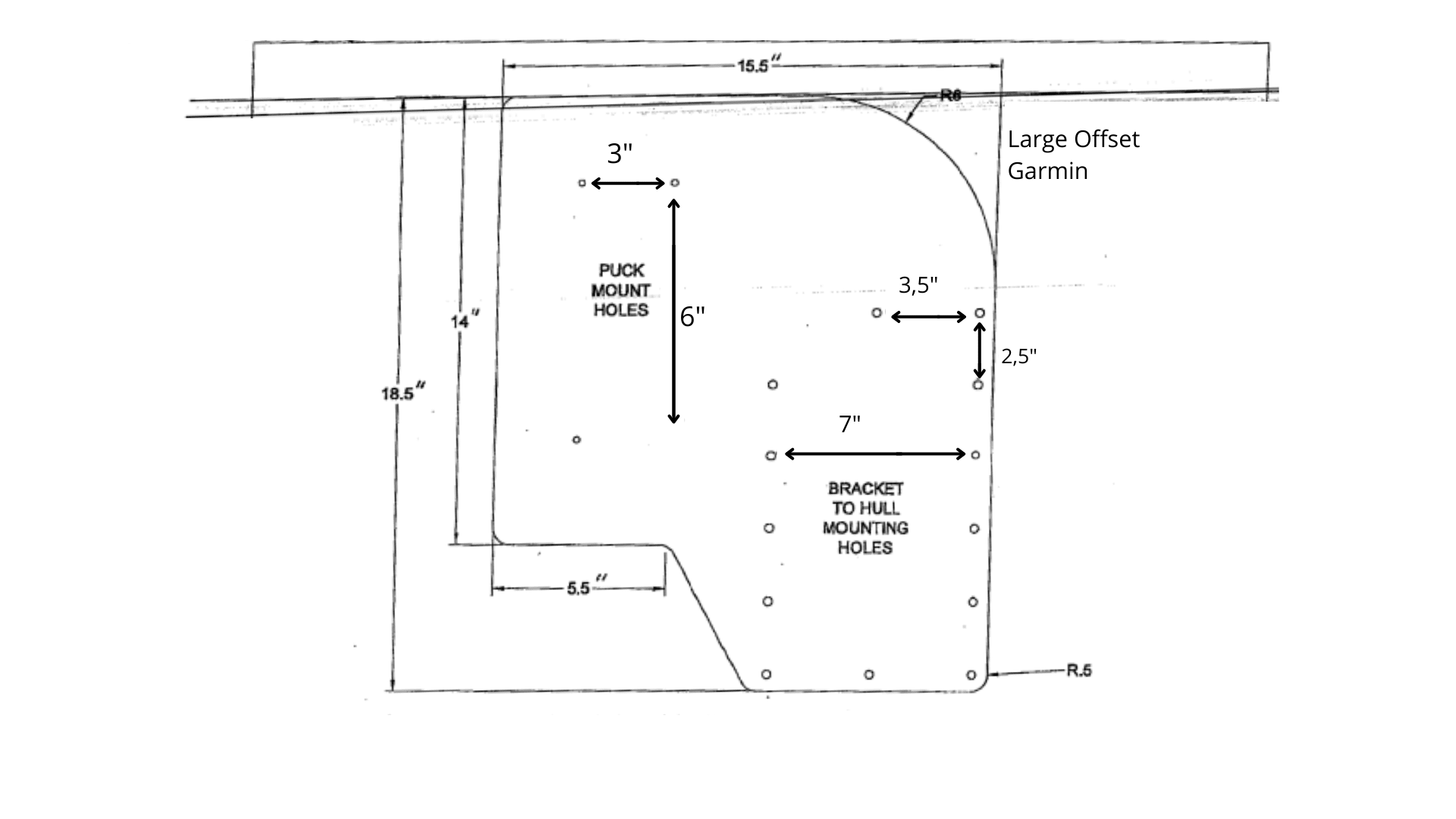

Large Offset Mounting Plate for Garmin Quick Release Plate System
- Part Number: SEA2308 The Sea Brackets Large Offset Trolling Motor Mounting Plate, designed for the Garmin Quick Release Plate System, offers a robust and reliable solution for installing any Force Kraken Trolling motor. Crafted from 6061 T6 Aluminum, each plate is primed, powder-coated, and UV-protected for exceptional durability against the elements. Whether for port or starboard installation, these plates boast clean, accurately gauged holes for seamless bolt engagement. Suggested Hardware: 316L stainless steel hardware is recommended for rust prevention • Mounting hardware included with Garmin Quick Release Plate System • Backing disk from Sea Brackets or an Alternative backing support system • 1/4–20 FlatHead Phillips machine screws, fender washers, and lock nuts • 5/16–18 Flathead Phillips machine screws, fender washers, and lock nuts **Hardware length is dependent on the thickness of the hull, backing hardware, and other Various components. Installation Guide
Large Offset Mounting Plate for Minn Kota Quest RTA - 55
- Part Number: SEA2305 The Sea Brackets Large Offset Trolling Motor Mounting Plate, designed for Minn Kota’s RTA-55 Quick Release Bracket, offers a robust and reliable solution for installing any Quest Series Trolling motor. Crafted from 6061 T6 aluminum, each plate is primed, powder-coated, and UV-protected for exceptional durability against the elements. Whether for port or starboard installation, these plates boast clean, accurately gauged holes for seamless bolt engagement. Suggested Hardware: 316L stainless steel hardware is recommended for rust prevention • Mounting hardware is included with Minn Kota’s RTA-55
- • Quick Release Bracket • Backing disk from Sea Brackets or an alternative backing support system • 1/4–20 tapered Phillips machine screws, fender washers, and lock nuts • 3/8–16 Flathead Phillips machine screws, fender washers, and lock nuts **Hardware length is dependent on the thickness of the hull, backing hardware, and other Various components. Installation Guide

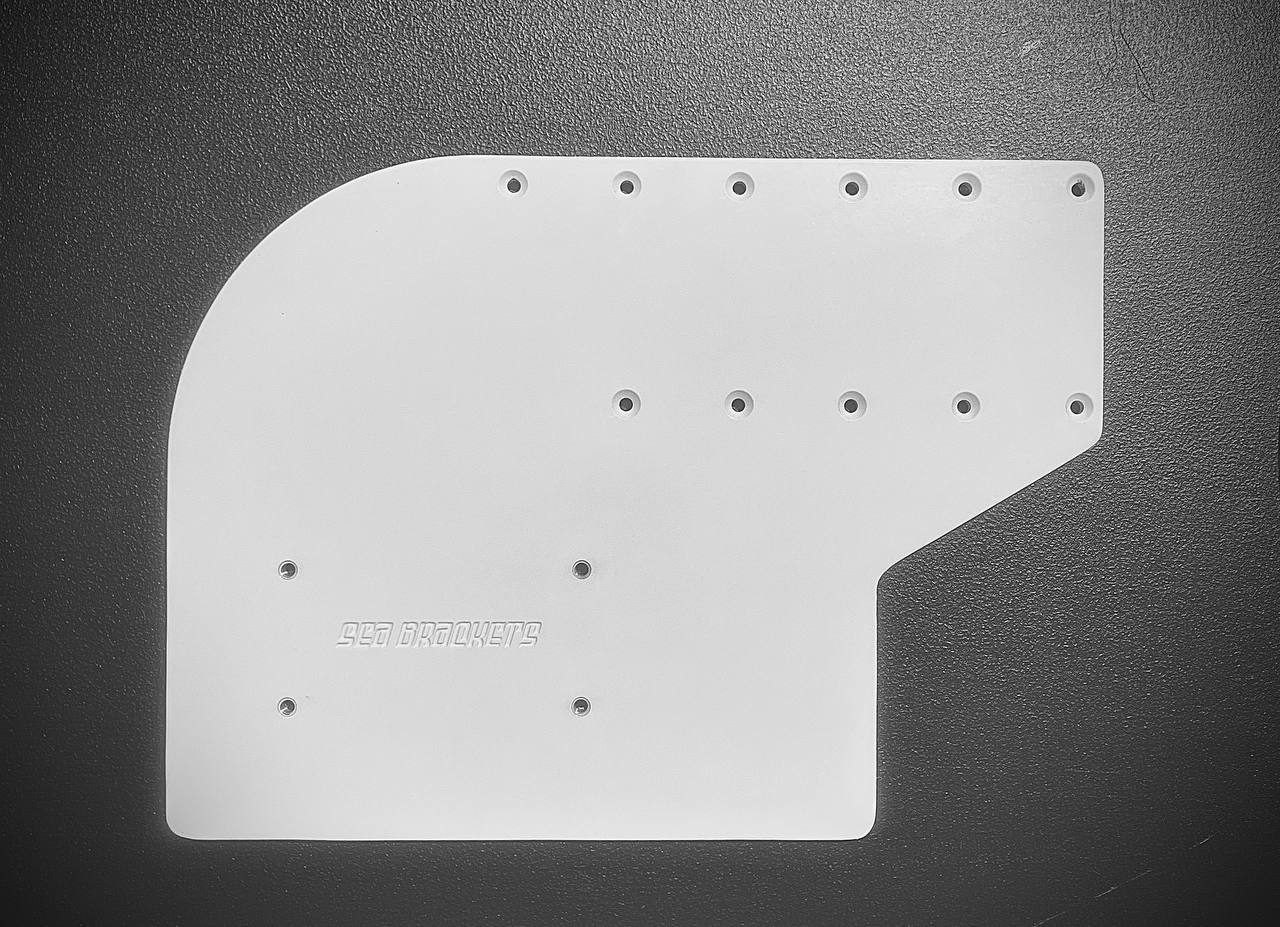

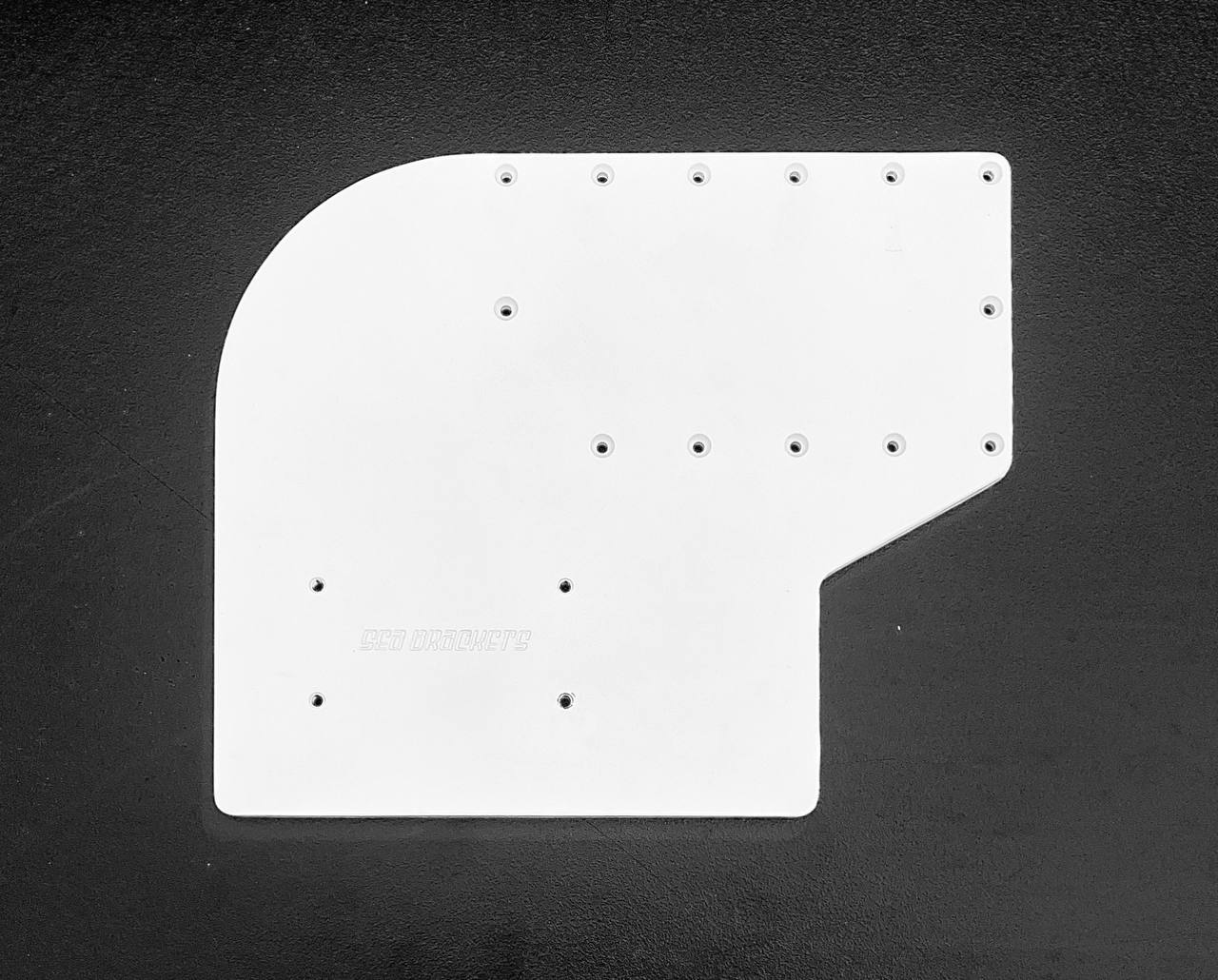

Small Offset Plate for Minn Kota RTA 54/62 and Rhodan Quick Release
Part Number: SEA2306
The trolling motor mounting plates, supplied by Sea Brackets, are manufactured using 6061 T6 Aluminum supplied primed and powder coated with added UV protection for a high quality and durable product. The tapped holes in the brackets are clean and free of power coat as well as gaged for accuracy and consistency for ease of bolt engagement. The manufacturing process is so reliable the brackets can be used as universal for both port and starboard installation, up to 108-inch shaft length..
- Small 1 /2" 6061 Aluminum (Compatible with Rhodan QRB/ Minn Kota RTA-54/RTA-62) offset mounting plate. (18.5” x 13.5” x ½”)
Dimension Diagram
Suggested hardware:
1 / 4 – 20 tapered Phillips machine screws, fender washers, backing plates, and locknuts. 316 stainless
steel is ideal for corrosion prevention. Mounting hardware that comes with the Rhodan quick-release
bracket or mounting hardware that comes with Minn Kota RTA-54./RTA-62
**Hardware length is dependent on the thickness of the hull, backing hardware, and other Various components.
Small Offset Plate for Garmin Quick Release Plate System
Part Number: SEA2311
The Sea Brackets small Offset Trolling Motor Mounting Plate, designed for the Garmin Quick Release Plate System, offers a robust and reliable solution for installing any Force Kraken Trolling motor. Crafted from 6061 T6 Aluminum, each plate is primed, powder-coated, and UV-protected for exceptional durability against the elements. Whether for port or starboard installation, these plates boast clean, accurately gauged holes for seamless bolt engagement.
Recommended Hardware:
316L stainless steel hardware is recommended for rust prevention
• Mounting hardware included with Garmins Quick Release Plate System
• Backing disk from Sea Brackets or an Alternative backing support system
• 1/4–20 Flathead Phillips machine screws, fender washers, and lock nuts
• 5/16–18 Flathead Phillips machine screws, fender washers, and lock nuts
**Hardware length is dependent on the thickness of the hull, backing hardware, and other Various components.

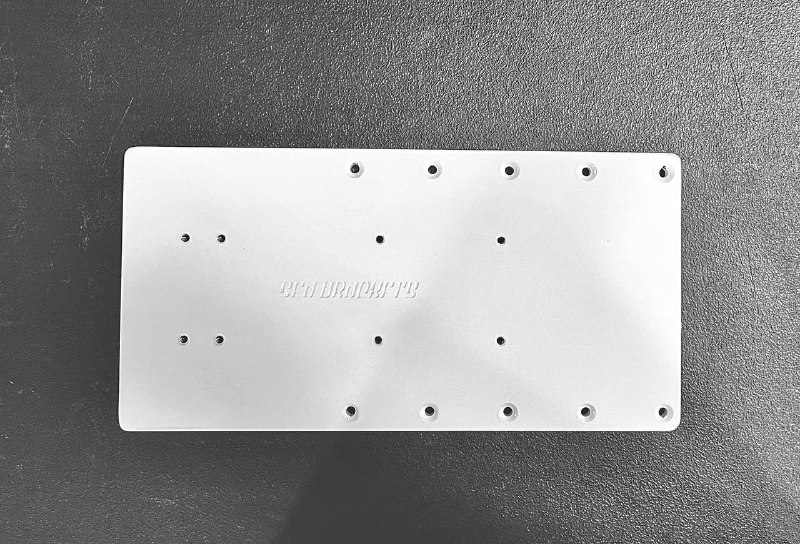

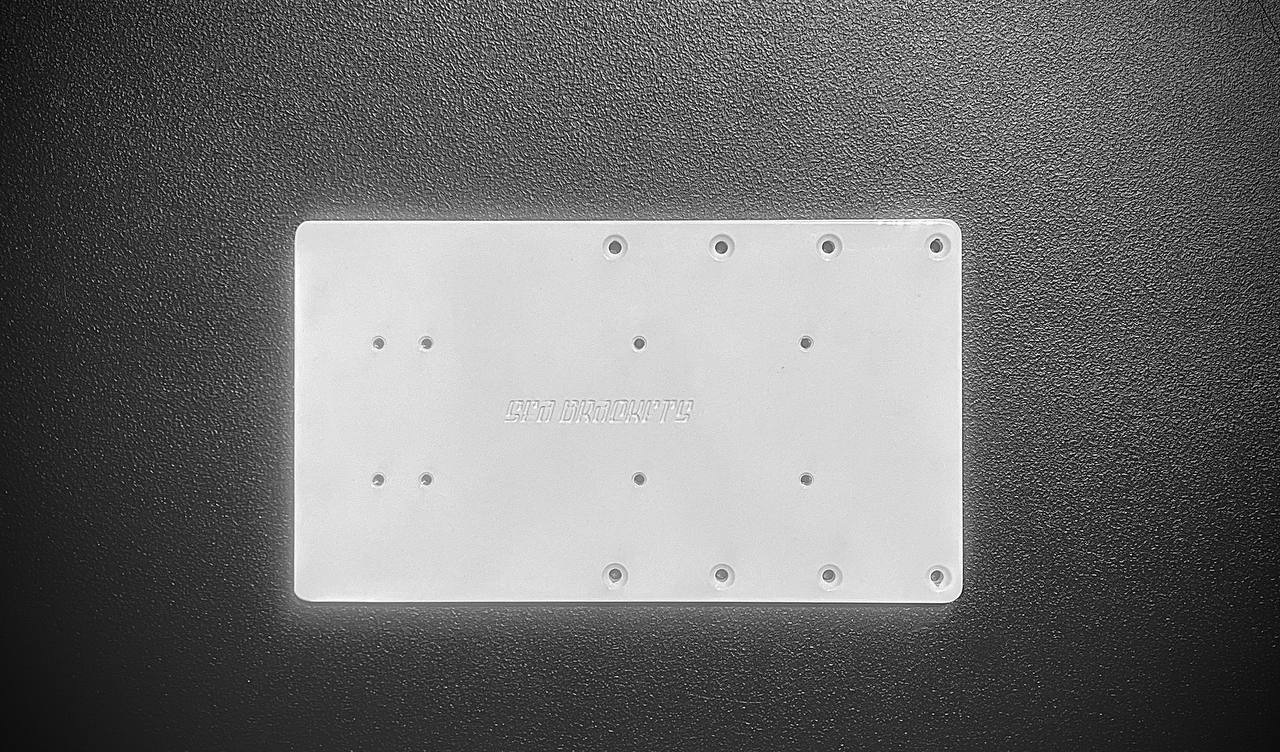

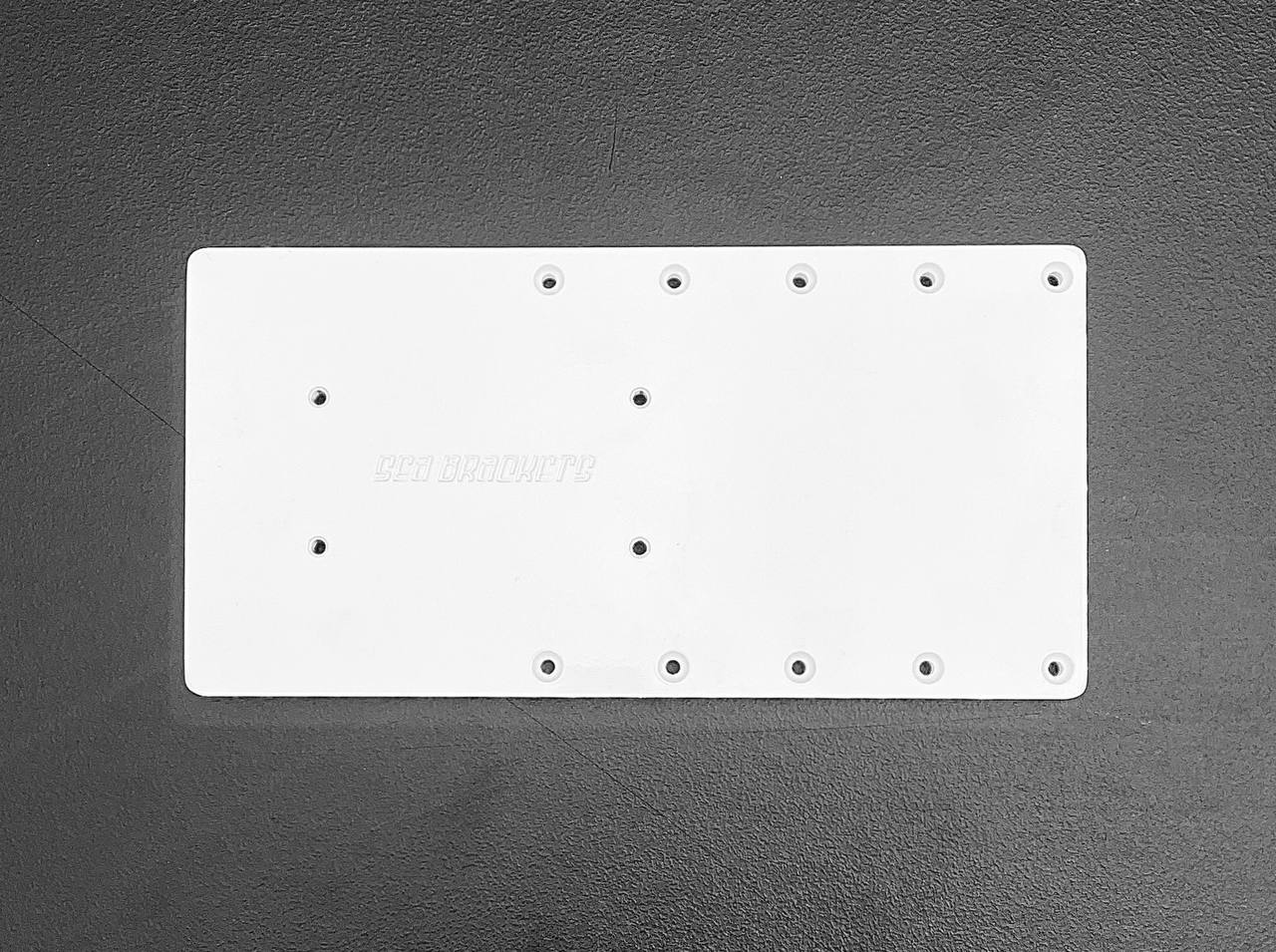

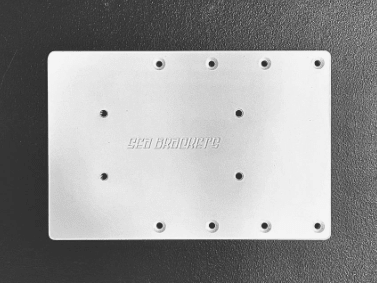

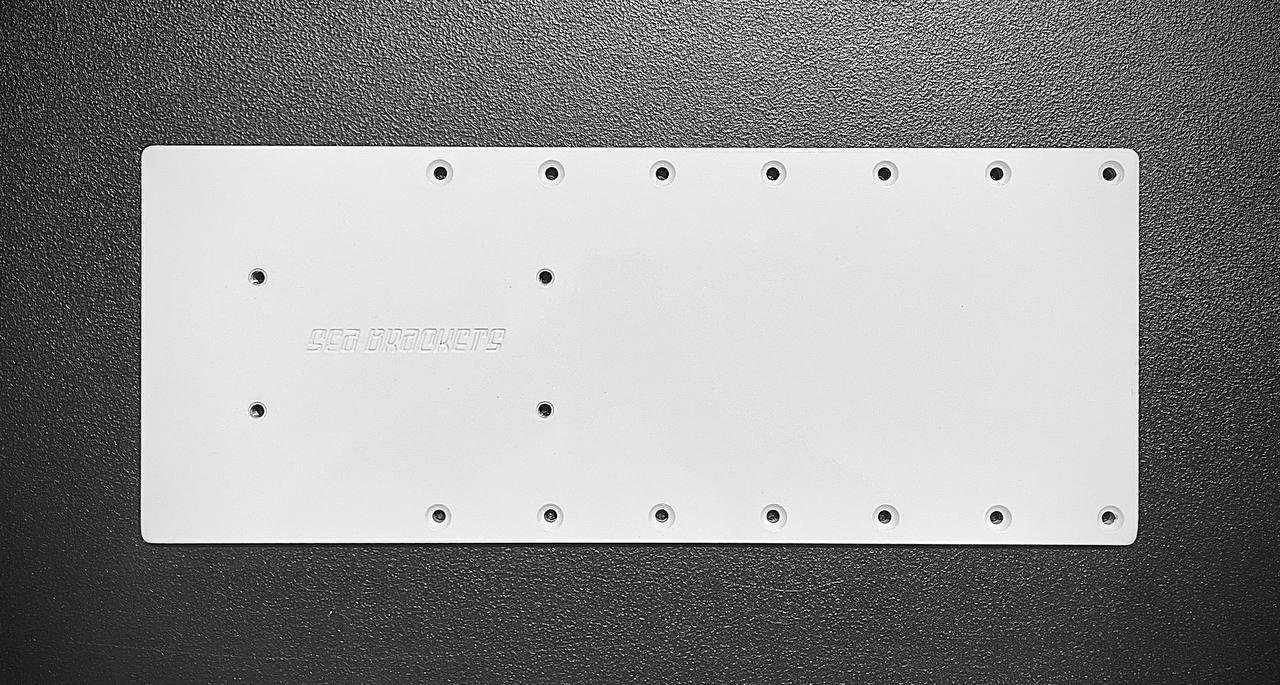

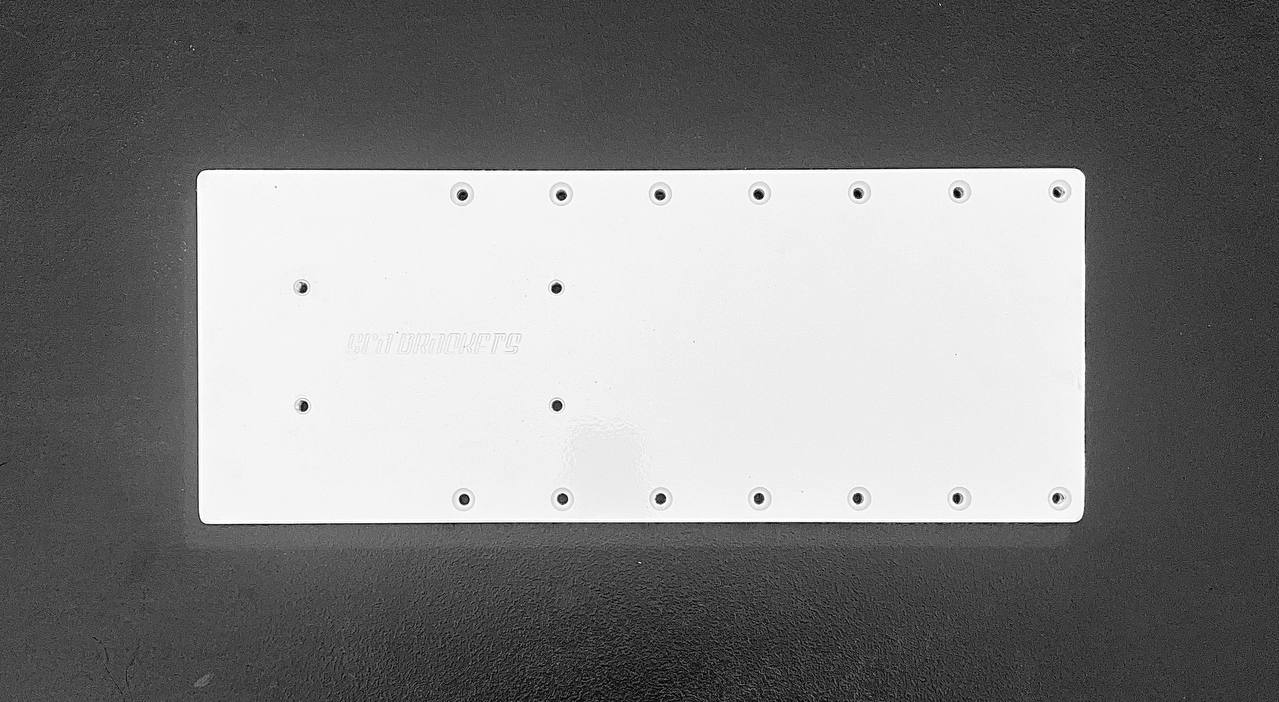

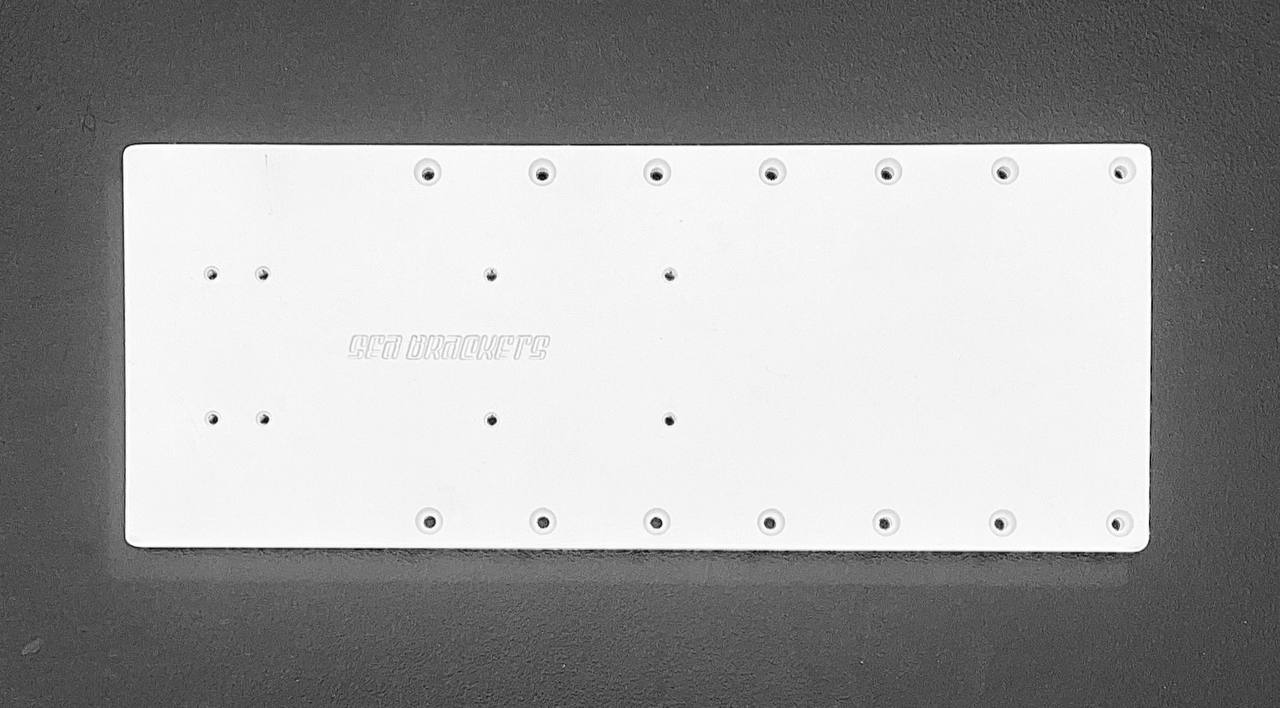

Straight Plates for Minn Kota RTA 54/55/62 and Rhodan Quick Release
These trolling motor mounting plates are manufactured using 6061 T6. Aluminum supplied primed and powder coated with added UV protection for a high-quality and durable product. The tapped holes in the brackets are clean and free of power coat as well as gaged for accuracy and consistency for ease of bolt engagement. Our manufacturing process is so reliable the brackets can be used as universal for both port and starboard installation.
- 20” Straight Mounting Plate
Part Number: SEA2325 (RTA-54/62)
Part Number: SEA2310 (RTA-55)
Dimensions: 20” x 8” x ½”
- 18” Straight Mounting Plate
Part Number: SEA2324
Dimensions: 18” x 8” x ½”
- 16” Straight Mounting Plate
Part Number: SEA2323
Dimensions: 16” x 8” x ½”
- 14” Straight Mounting Plate
Part Number: SEA2322
Dimensions: 14” x 8” x ½”
Suggested hardware:316L stainless steel hardware is recommended for rust prevention• Mounting hardware that comes with the Rhodan quick-release bracket or mounting hardware that comes with Minn Kota RTA-54/55/62.
• Backing disk from Sea Brackets or an Alternative backing support system
• 1/4–20 Flat Head Phillips machine screws, fender washers, and lock nuts
• 5/16–18 Flathead Phillips machine screws, fender washers, and lock nuts
1 / 4 – 20 tapered Phillips machine screws, fender washers, backing plates, and locknuts. 316 stainless steel is ideal for corrosion prevention.
**Hardware length is dependent on the thickness of the hull, backing hardware, and other Various components.
INSTALLATION GUIDE
• Backing disk from Sea Brackets or an Alternative backing support system
• 1/4–20 Flat Head Phillips machine screws, fender washers, and lock nuts
• 5/16–18 Flathead Phillips machine screws, fender washers, and lock nuts
1 / 4 – 20 tapered Phillips machine screws, fender washers, backing plates, and locknuts. 316 stainless steel is ideal for corrosion prevention.
**Hardware length is dependent on the thickness of the hull, backing hardware, and other Various components.
INSTALLATION GUIDE

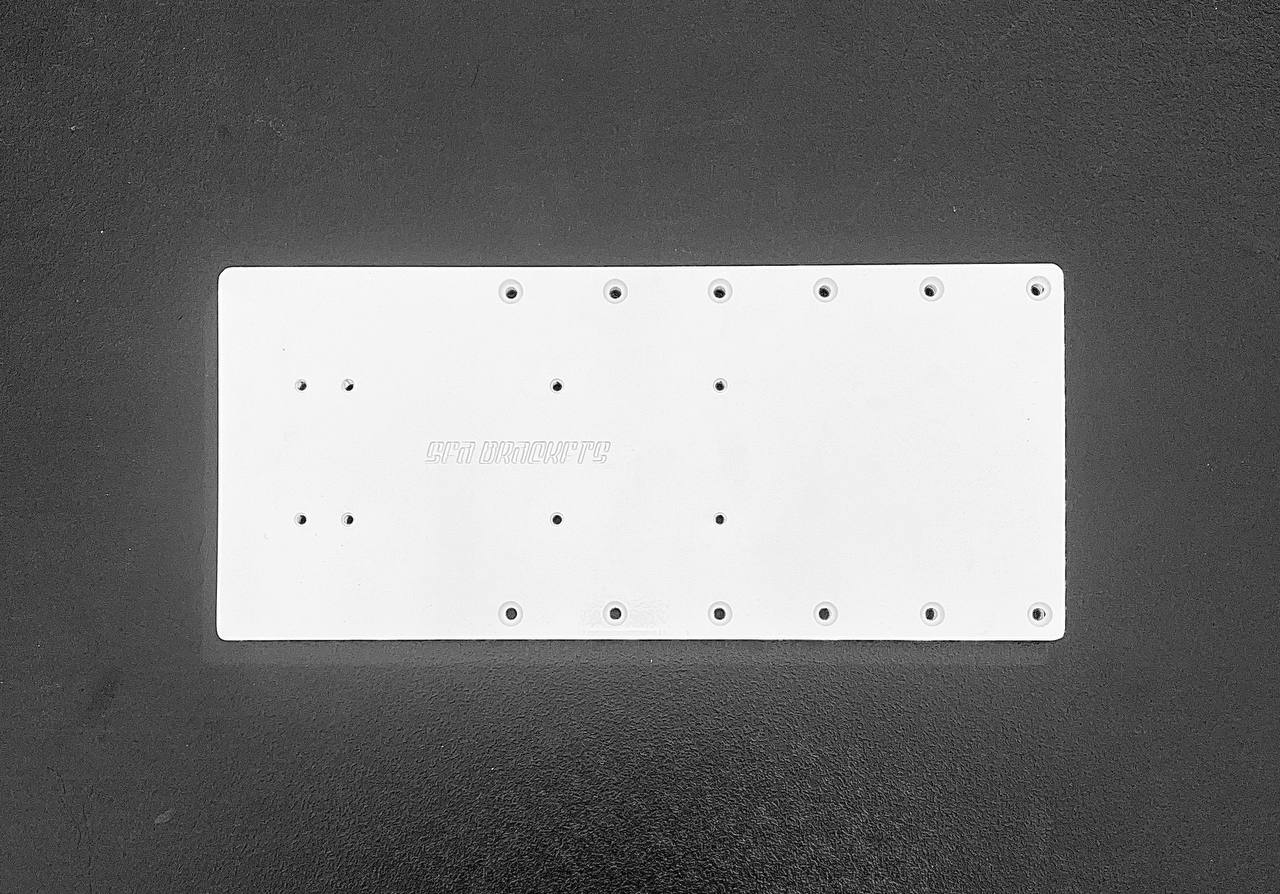

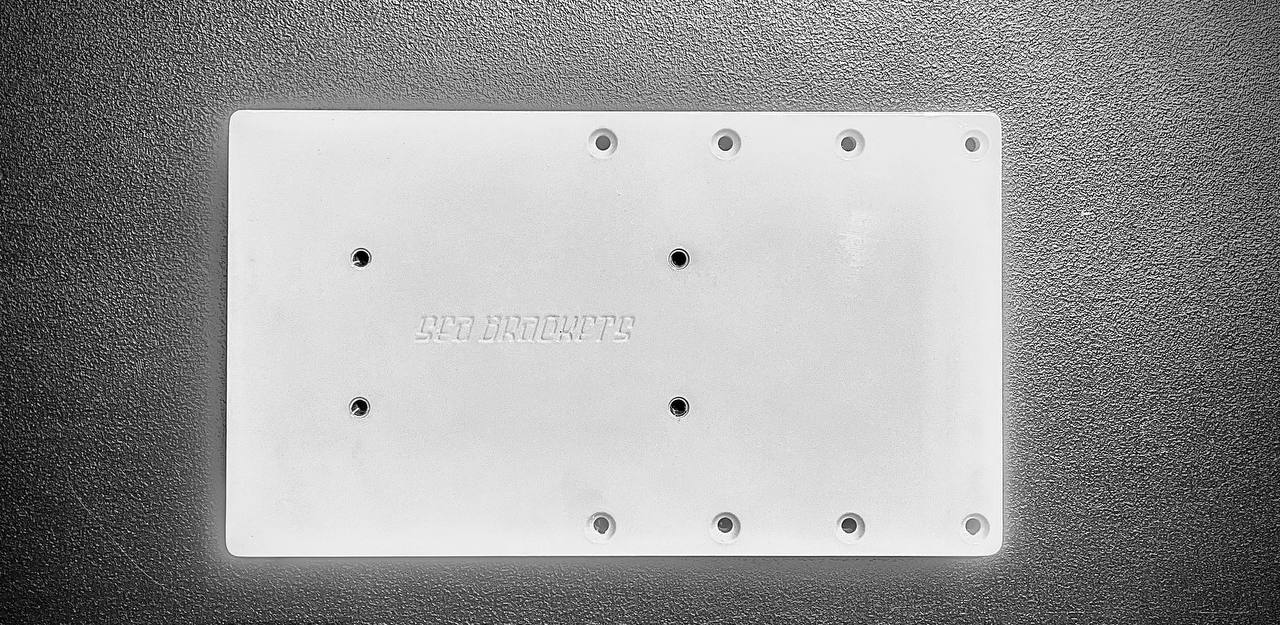

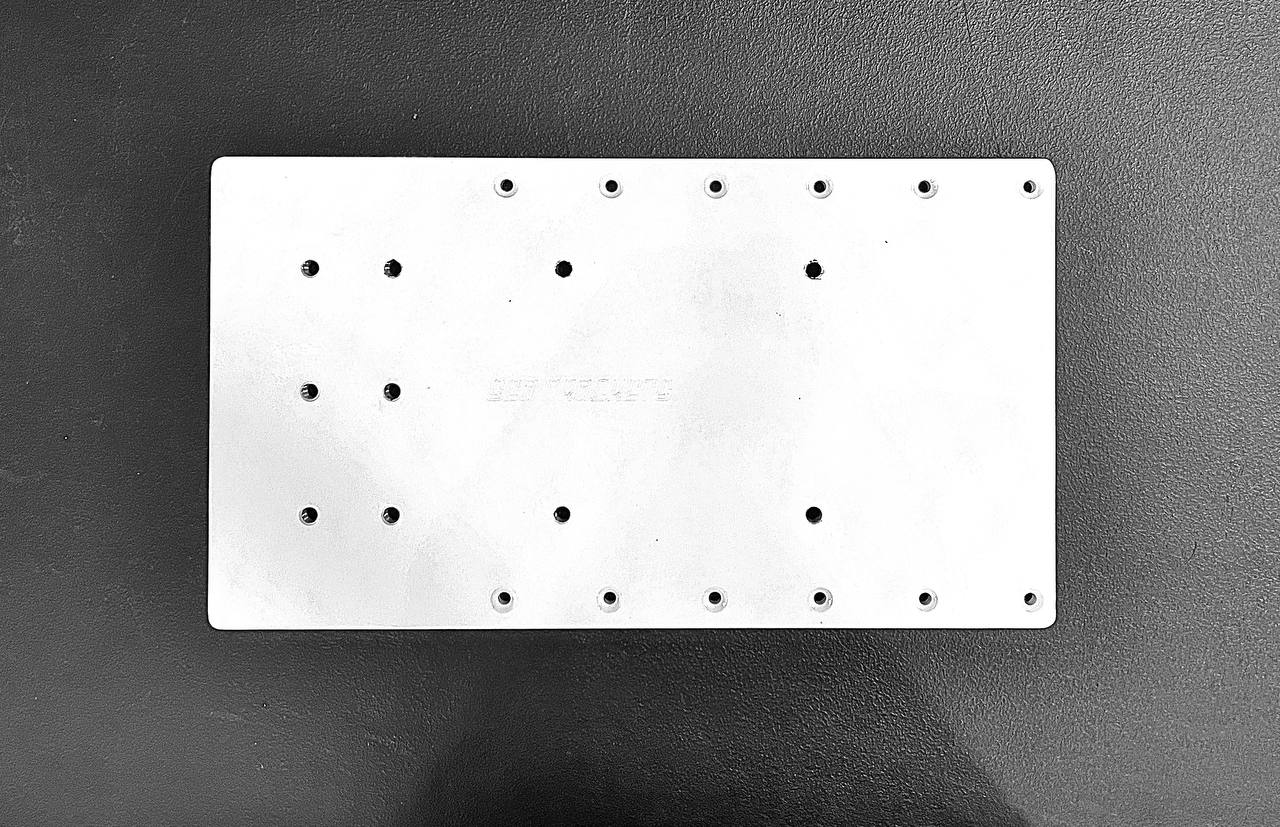

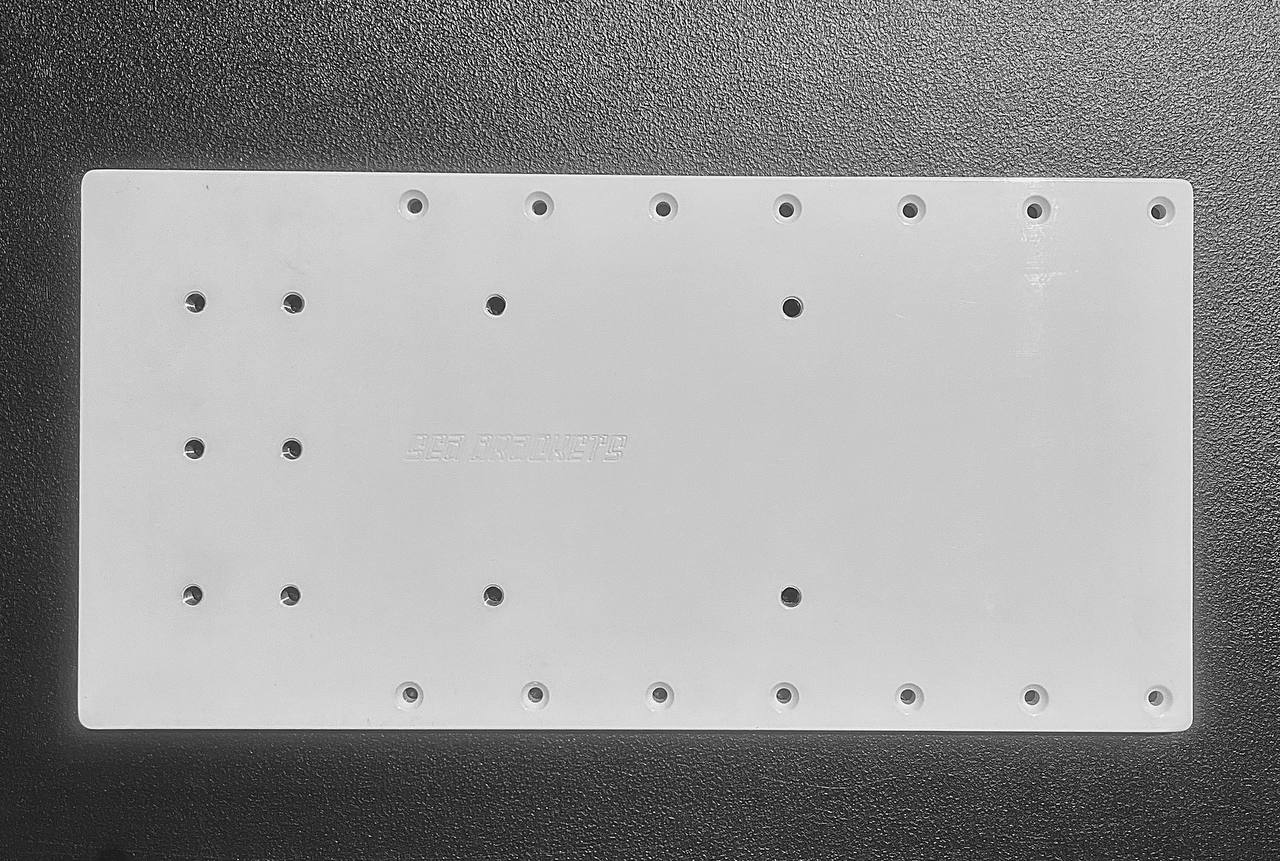

Straight Plates for Garmin Quick Release
The Sea Brackets Straight Trolling Motor Mounting Plates are designed for the Garmin Quick Release Plate System and offer a robust and reliable solution for installing any Force Kraken Trolling motor. Crafted from 6061 T6 Aluminum, each plate is primed, powder-coated, and UV-protected for exceptional durability against the elements. Whether for port or starboard installation, these plates boast clean, accurately gauged holes for seamless bolt engagement.
- 20” Straight Mounting Plate
Part Number: SEA2303
Dimensions: 20” x 8” x ½”
- 18” Straight Mounting Plate
Part Number: SEA2302
Dimensions: 18” x 8” x ½”
- 16” Straight Mounting PlatePart Number: SEA2301Dimensions: 16” x 8” x ½”
- 14” Straight Mounting Plate Part Number: SEA2312Dimensions: 14” x 8” x ½”
- 14” Straight Mounting Plate Part Number: SEA2312Dimensions: 14” x 8” x ½”
Suggested hardware:316L stainless steel hardware is recommended for rust prevention• Mounting hardware included with Garmins Quick Release Plate System• Backing disk from Sea Brackets or an Alternative backing support system• 1/4–20 Flat Head Phillips machine screws, fender washers, and lock nuts• 5/16–18 Flathead Phillips machine screws, fender washers, and lock nuts
**Hardware length is dependent on the thickness of the hull, backing hardware, and other Various components.
**Hardware length is dependent on the thickness of the hull, backing hardware, and other Various components.

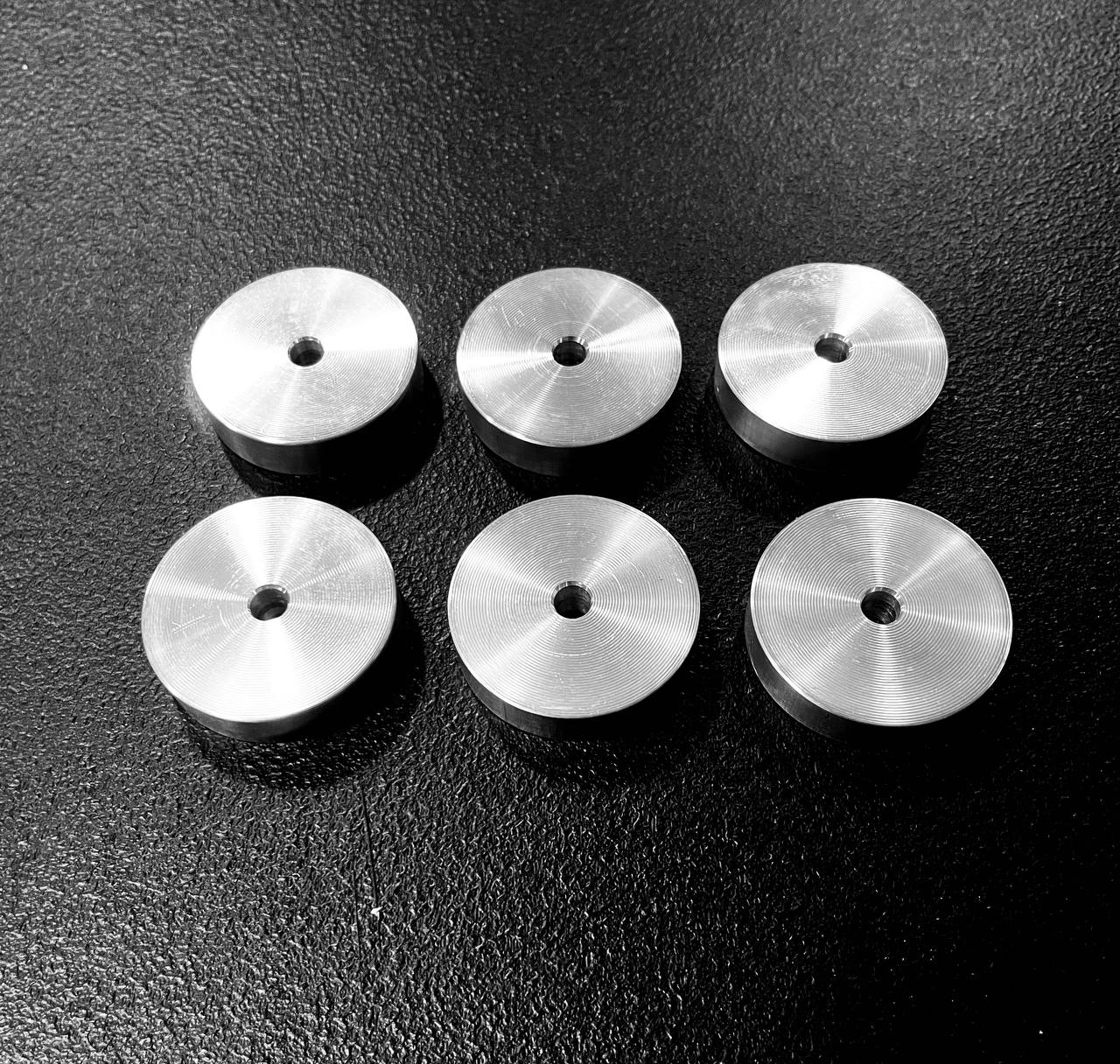

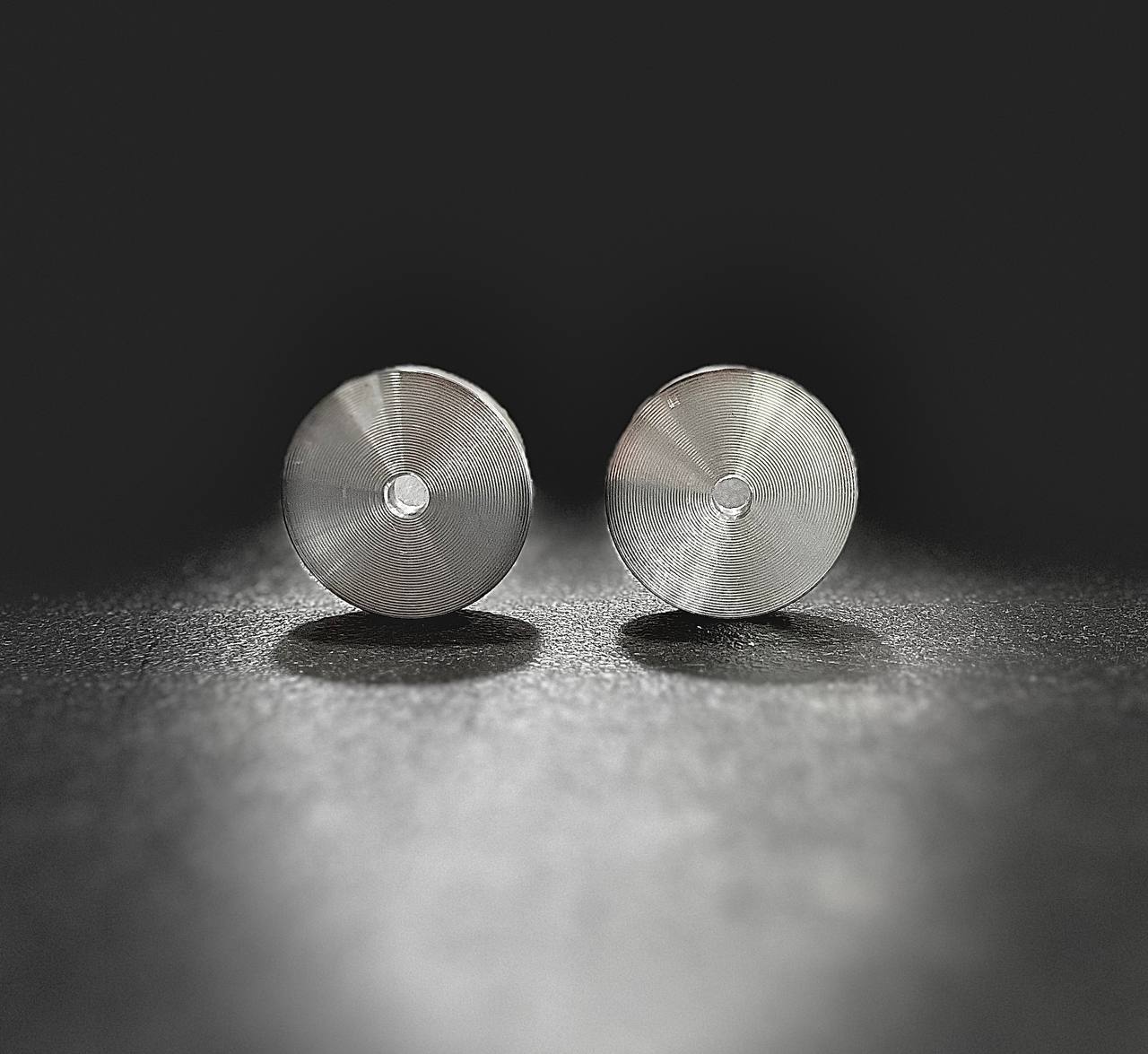

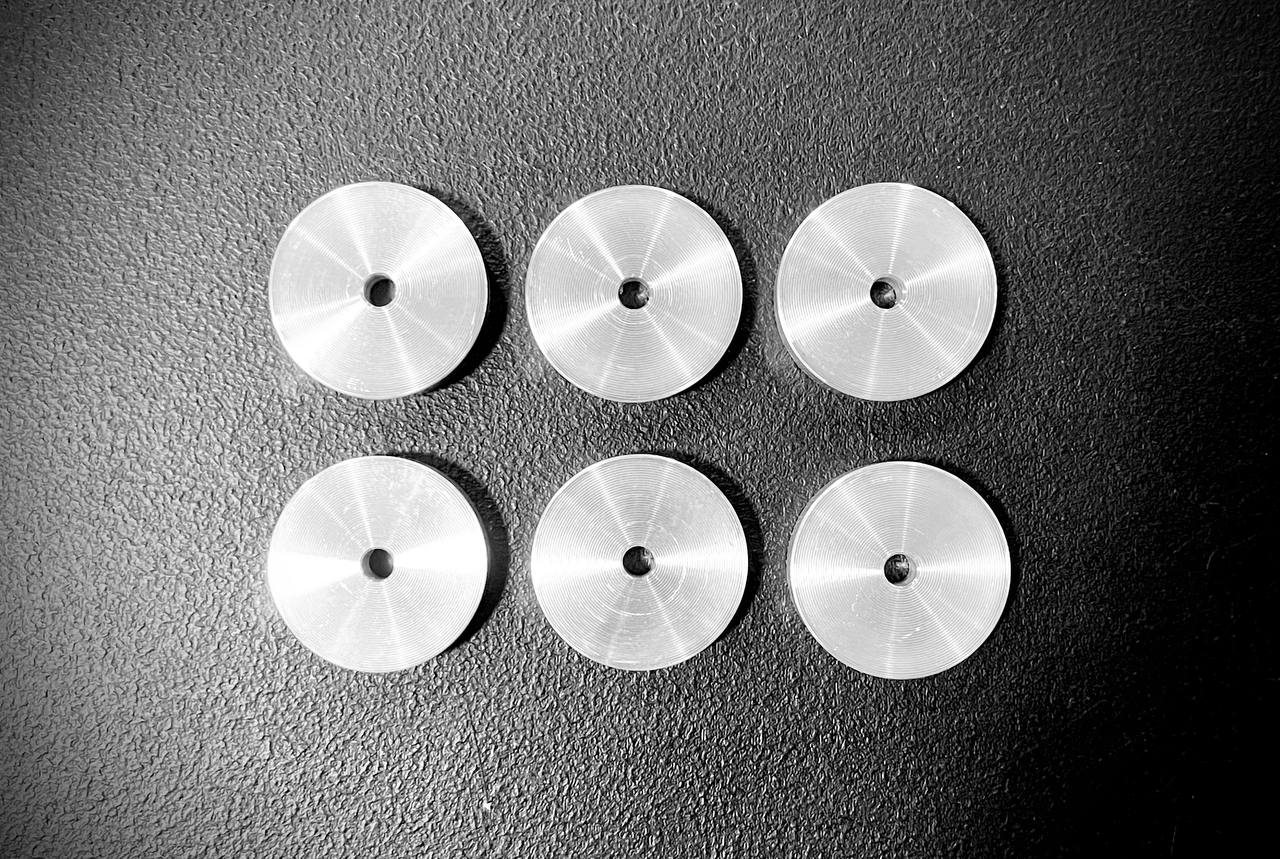

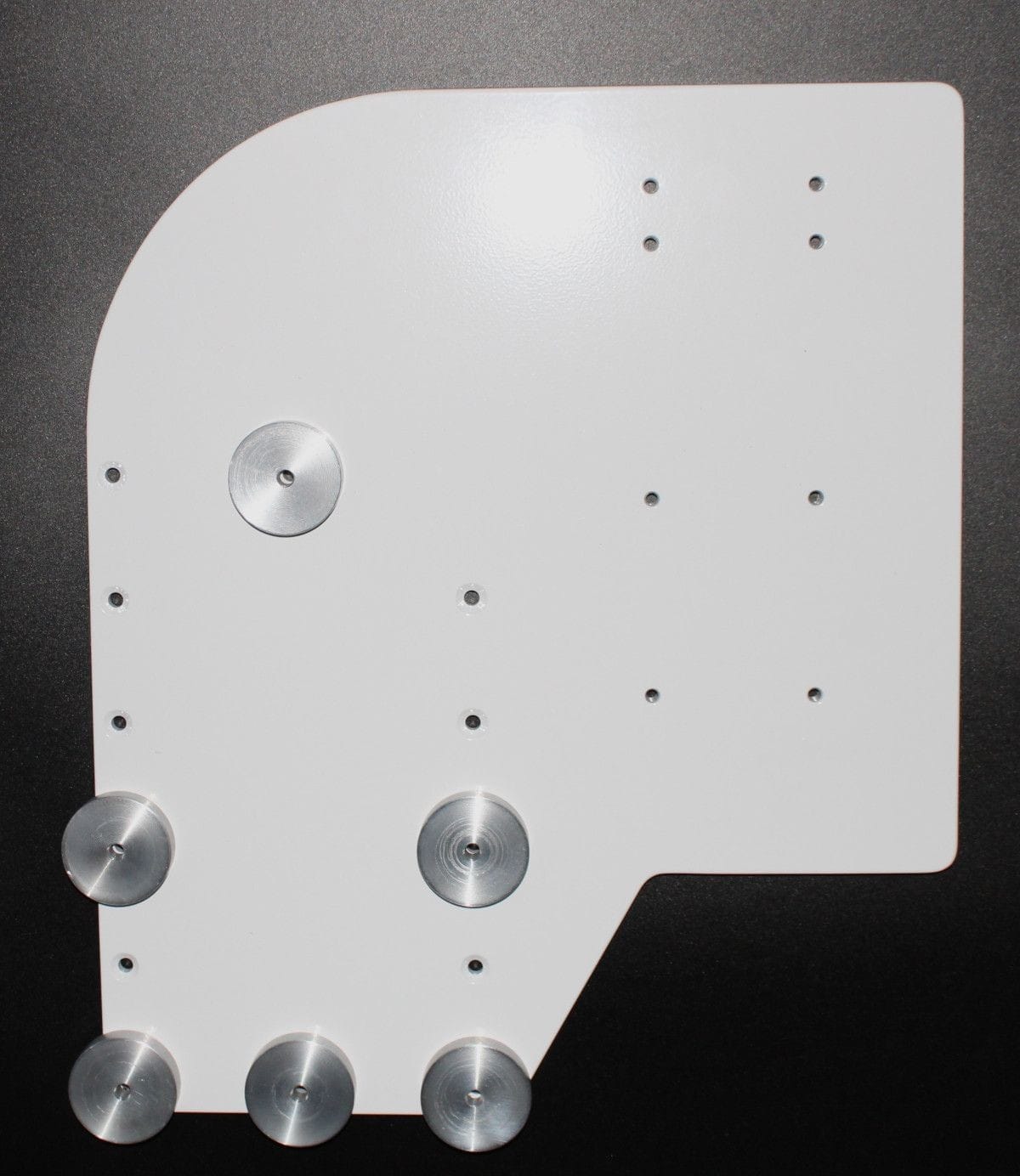

Bracket Mounting Disks
An aluminum backing support for a trolling motor mount is a 2” diameter disk made of ½” thick 6061-grade aluminum. The backing support is designed to provide additional reinforcement to the mounting area of the boat where the trolling motor is attached.
Benefits of using mounting disks:
1. Load Distribution: Multiple backing supports can distribute the load over a wider area compared to a single backing plate.
2. Flexibility: Using multiple backing supports allows for more flexibility in positioning and alignment.
3. Accessibility: Using multiple backing supports can make it easier to maneuver and install the components in tight spaces, as you can insert them one by one and secure them individually.
**When using these backing disks, it is important to always have a fender washer between the disk and the lock nut. These disks are designed to work with ¼-20 Phil flat machine screws.
We recommend using machine screws with coarse threads. Please ask your local distributor of hardware what locking nuts work best for the thread type that you are using for your installation.
Sea Brackets Offset Plate Installation Guide
We recommend always using a trained professional when installing a trolling motor. These offset mounting plates are designed to work with both the standard Rhodan quick-release bracket mounting puck and the mounting puck for Minn Kota’s RTA–54/RTA-62 quick-release bracket. Utilizing an offset mounting plate when installing your trolling motor will allow you to configure your
quick-release mounting puck in directions that are not possible by just mounting to your bow.
Our offset trolling motor mounting plates require flat head 1 / 4 – 20 machine screws, 1 / 4 – 20 lock nuts and fender washers, and backing plates (starboard or aluminum) for each installation. Every boat is different and will require different length screws to get through the plate, hull, raiser pads (if needed) backing plates, etc. It is important to take all these variables into consideration when preparing for your installation.
If your installation requires the mounting puck to be over the side of your gunnel, you will need 2” – 2.5” screws 1 / 4
– 20 mounting screws (pan head for Rhodan and flat head for Minn Kota RTA–54/RTA-62). This will allow you to still have a fender washer and lock nut.
It is very important to lay out your mounting plate and trolling motor before drilling ANY holes into your bow. This will allow you to ensure that you are installing your trolling motor the exact way that you desire. Depending on your boat, you may need to install an access hole for the backing plate under the mounting bracket.
It is very important to lay out your mounting plate and trolling motor before drilling ANY holes into your bow. This will allow you to ensure that you are installing your trolling motor the exact way that you desire. Depending on your boat, you may need to install an access hole for the backing plate under the mounting bracket.

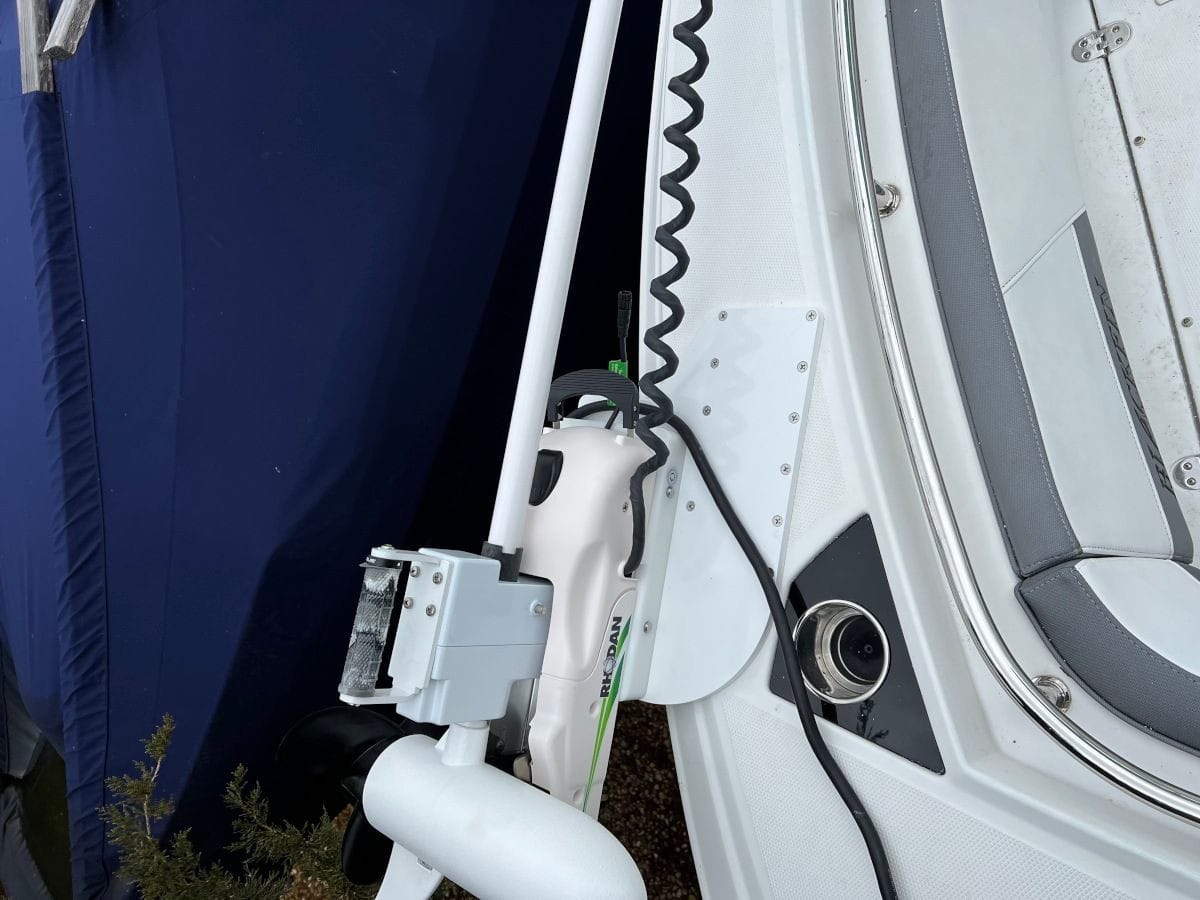

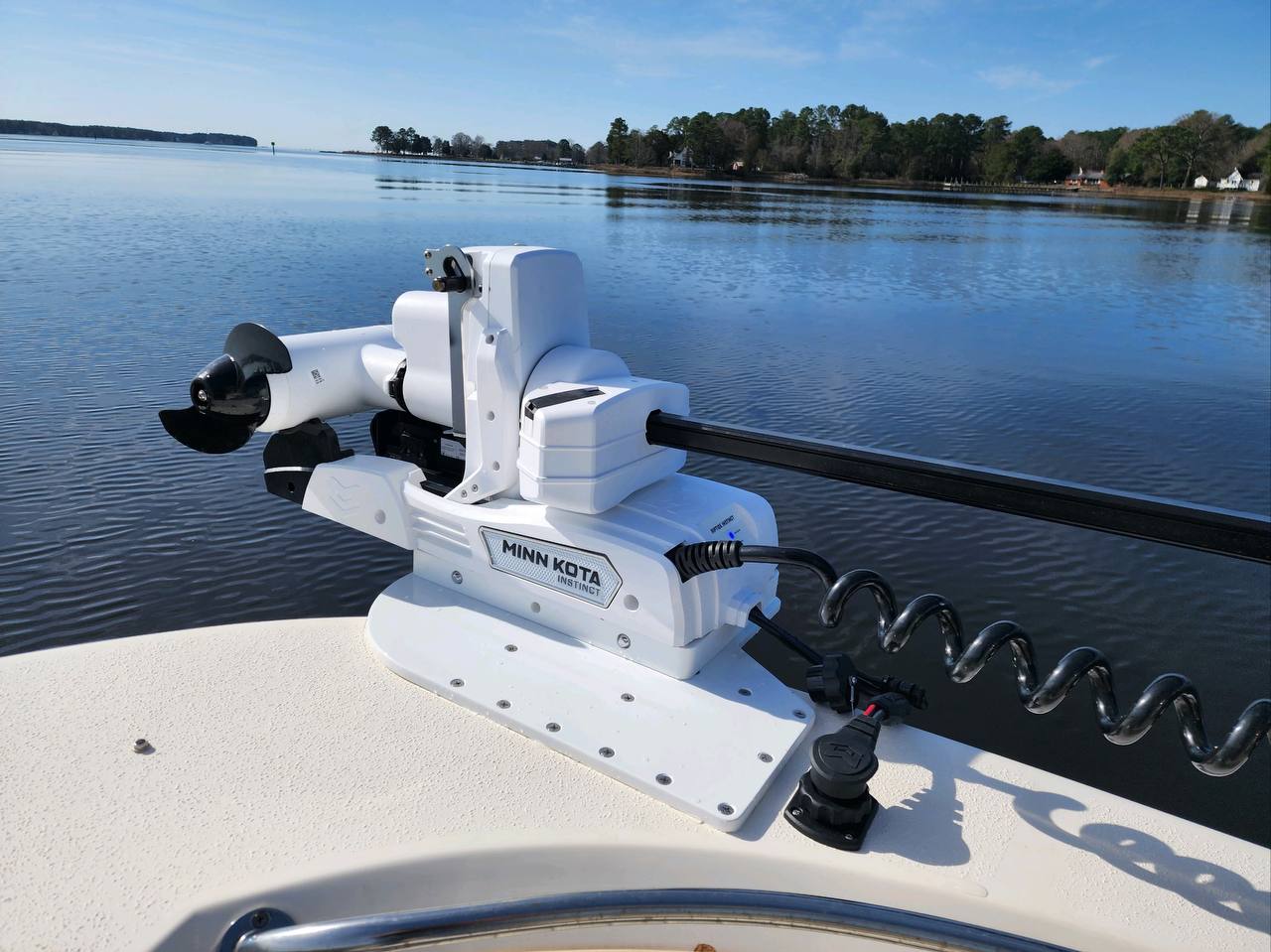

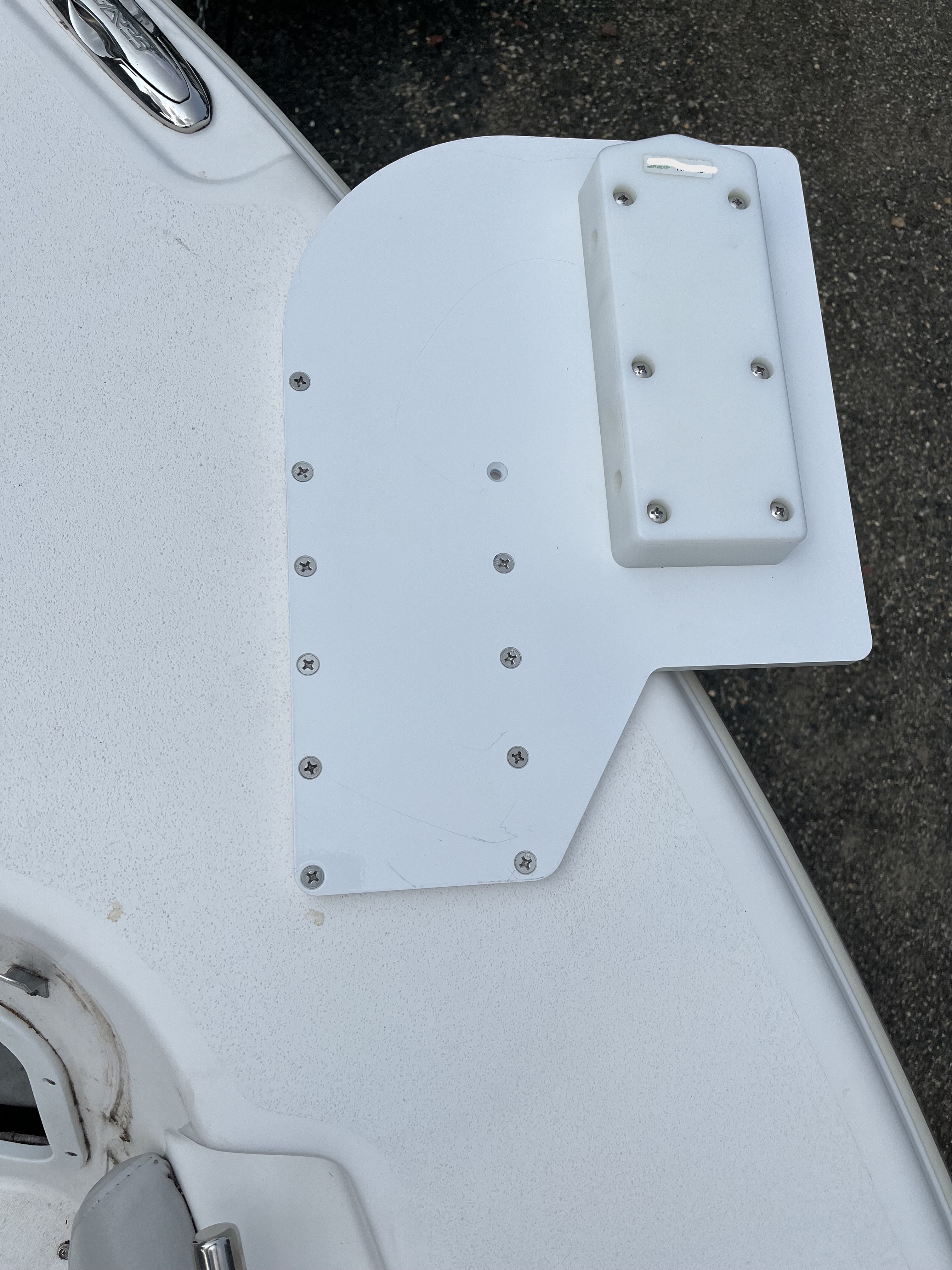

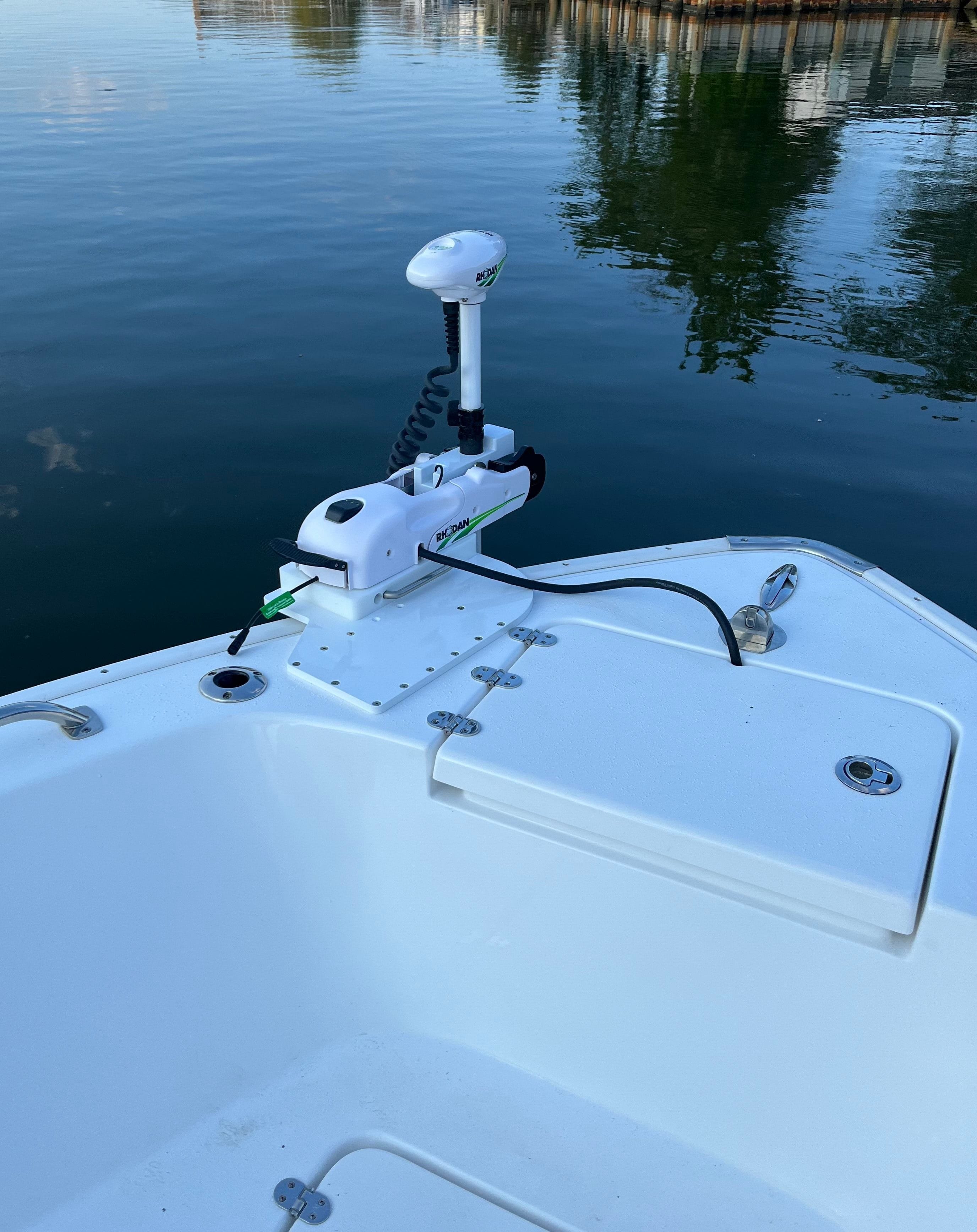

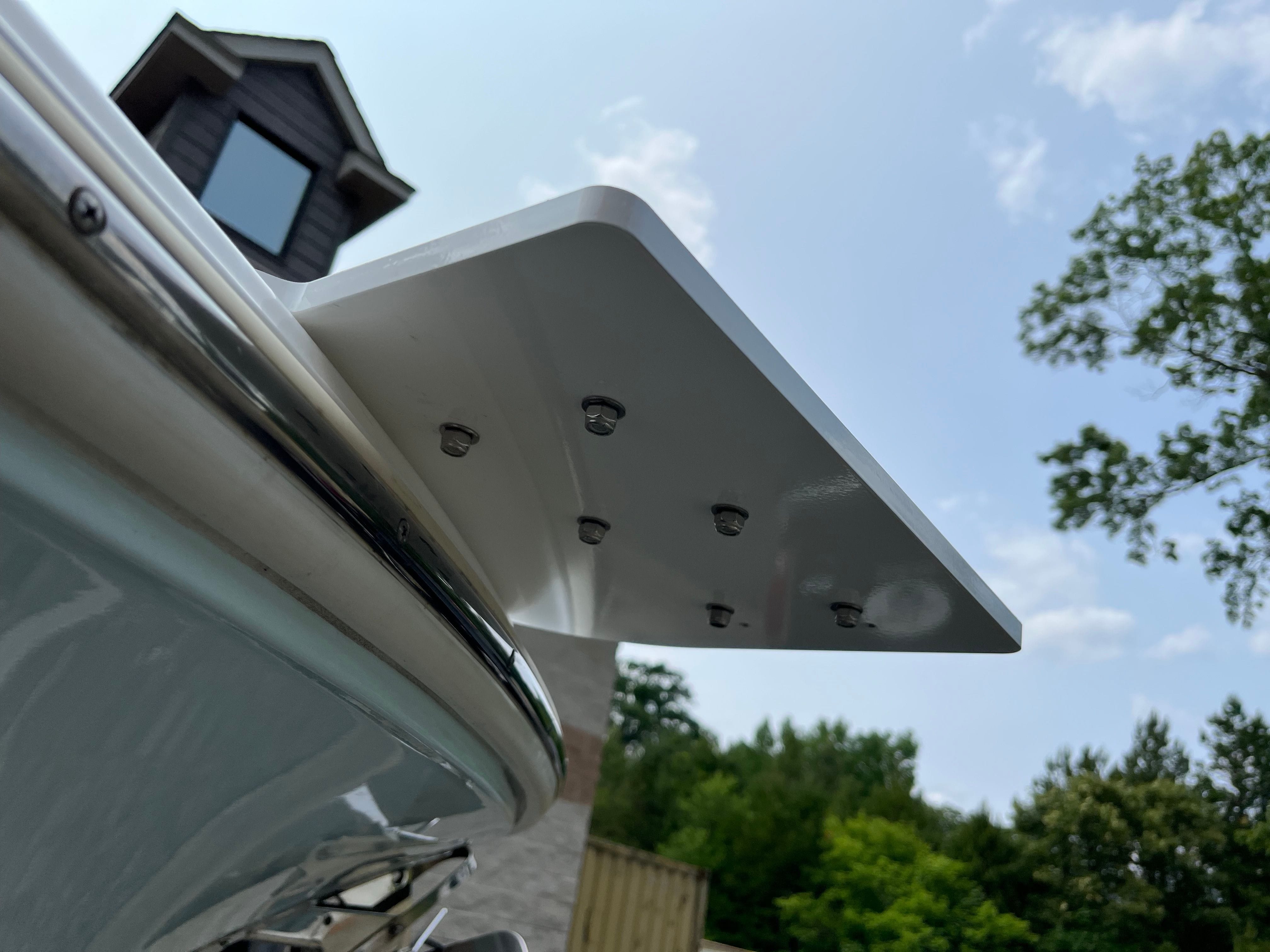

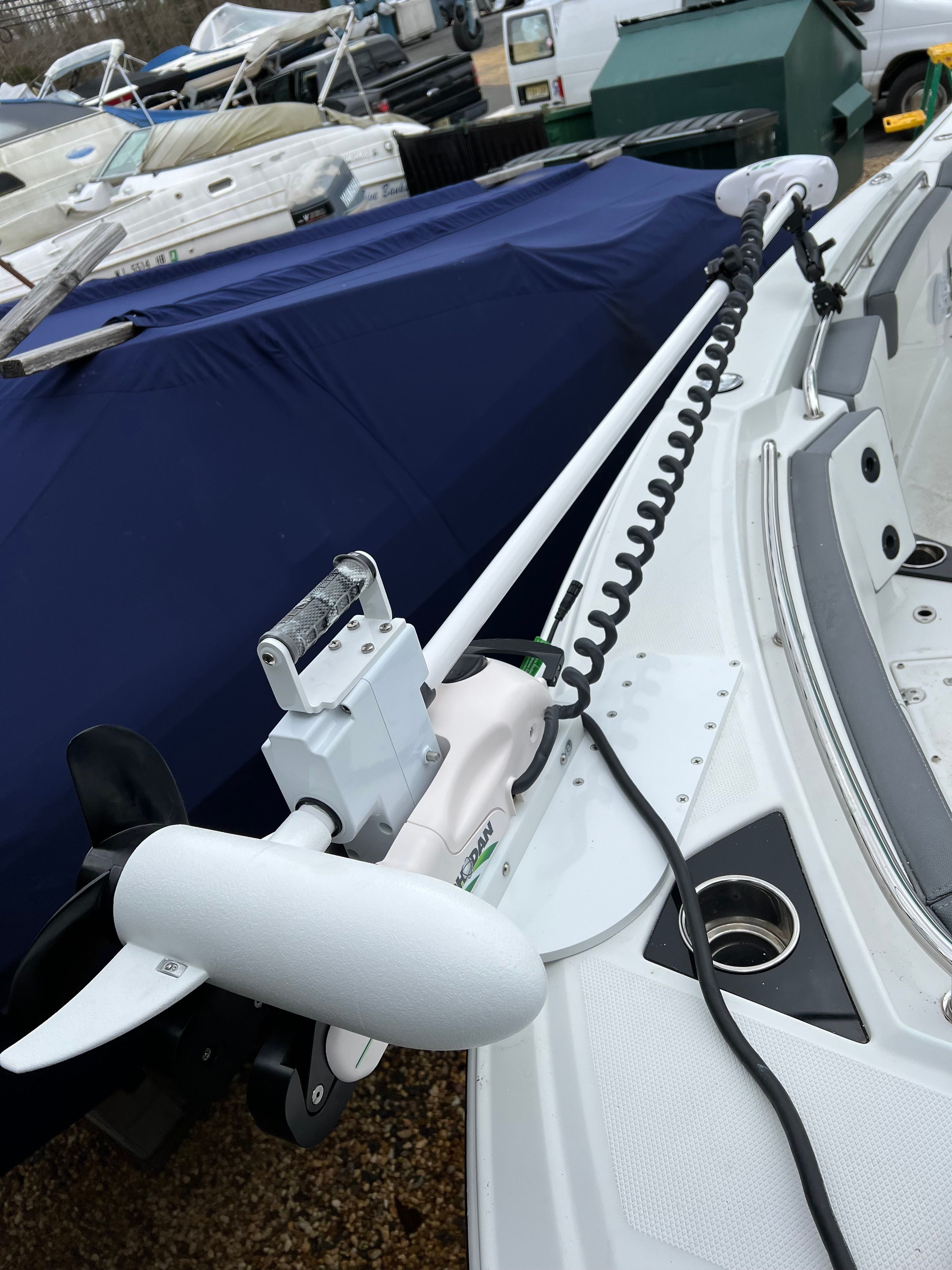

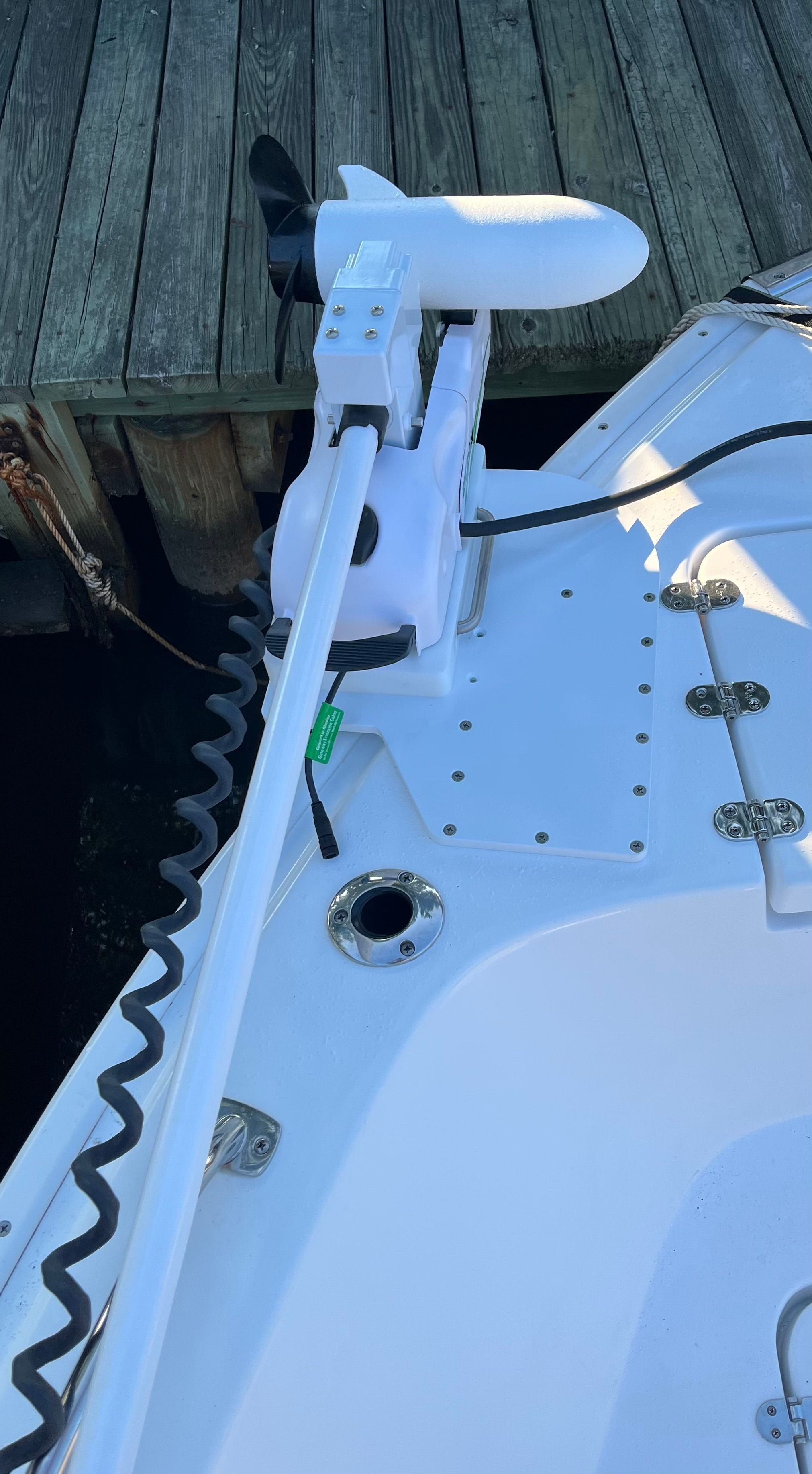

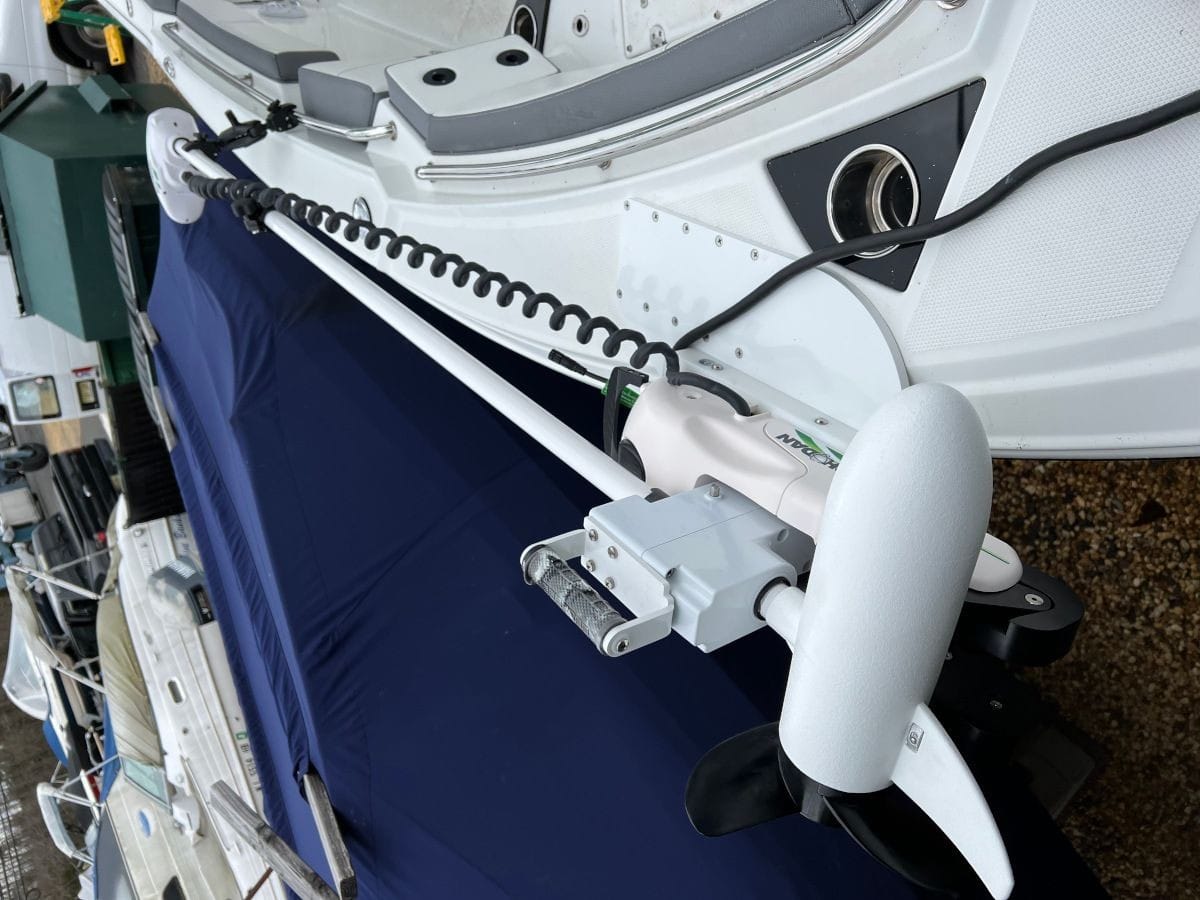

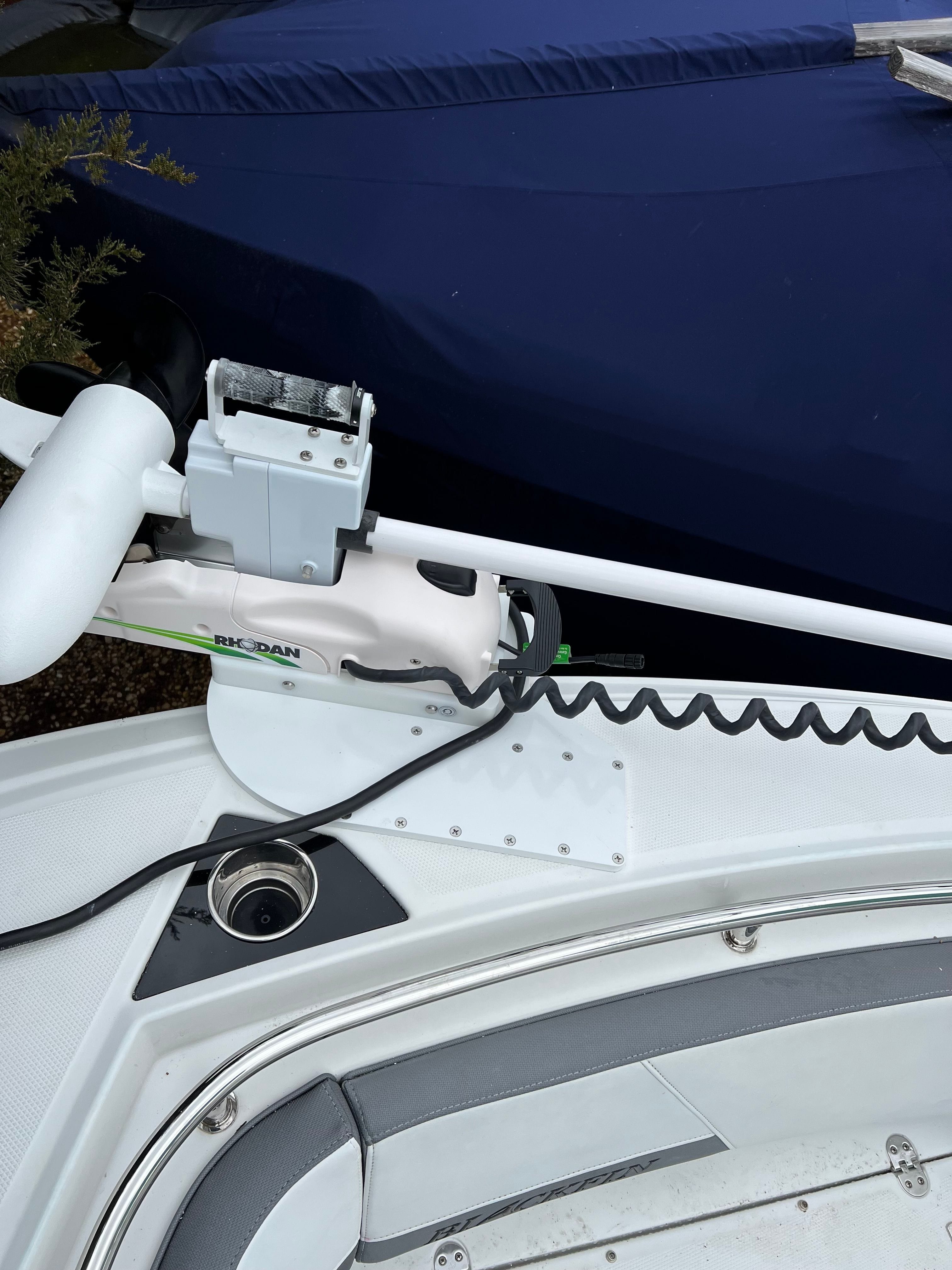

Installation Gallery
